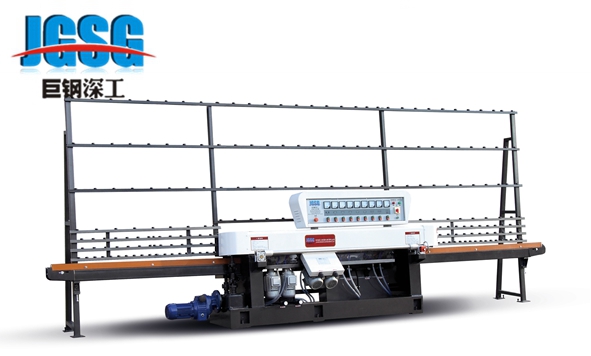

JGM8325-45°玻璃磨边机：该机适用于不同尺寸和厚度的平板玻璃的直边和棱角磨削，粗精磨抛光一次完成，抛光后的平面接近于玻璃母体的光洁程度，调整不同加工厚度时，可参考前梁上数显表进行调整，前倒角磨头能随前梁同步移动，具有结构先进；精确度高，操作方便，同一厚度可连续加工等优点，是玻璃深加工必备的加工设备。

This machine is suitable for edge and cornor grinding of plate glasss of different size and thickness,finishing coarse grinding ,fine grinding and polishing at one time.The flat surface after polishing is close to bright and clean degree of glass matrix.When adjusting different processing thickness (able to refer to data display instrument on front-axle beam),former chamfering grinding head  can move simultaneously along with the front-axle beam.It possesses the advantages of advanced structure,high working precision,easy operation and capacity of continuous processing for the same thickness,definitely being necessary equipment for glass deep processing.

技术参数

进料速度：            0.7-5m/min

最小加工尺寸：     50mm*50mm

加工玻璃厚度：     3mm-25mm

总功率：               17.25kw

外形尺寸：           6800*1000*2500mm

重量：                  2800kg

电压：                  380V 50HZ
